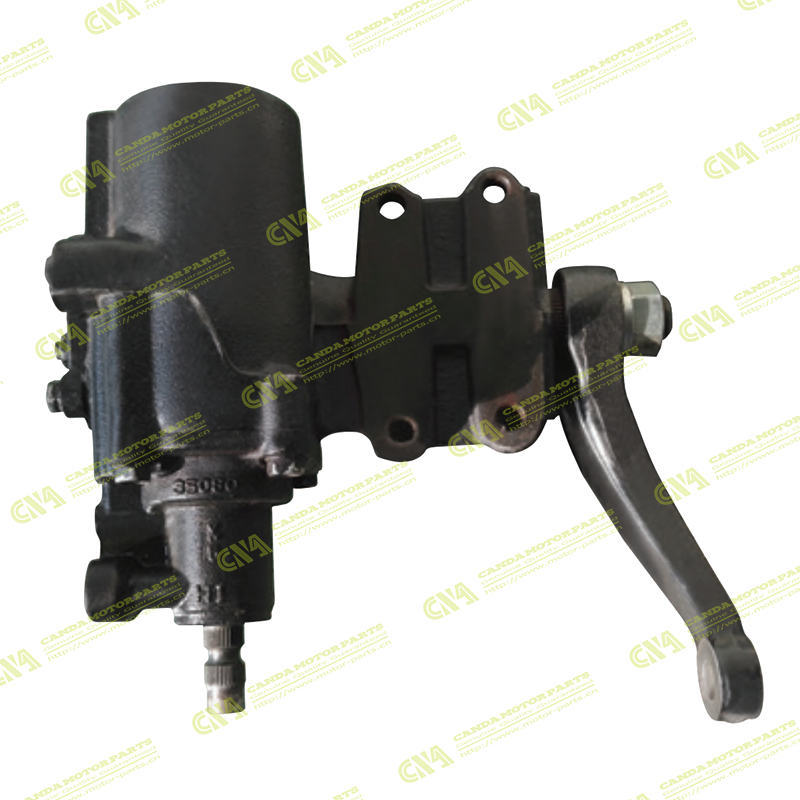

Steering Gear Box TOYOTA SG-10040RH
TOYOTA SG-10040RH
- OEM REF.：
- SG-10040RH
- CNA NO.：
- CNA-F127Z-1-3411010 RH
请选择规格
- Quantity：
Stock：0 pcs Sold：0 pcs
-
Steering Gear Box TOYOTA SG-10040RH0 US$
Total：0 US$
Applicable Front A×le Load 2500kg
Power Cylinder Diameter 80mm
Rated Work Pressure 10MPa
Recommend Pump Flow Rate 10L/min
Circles 4.5r
Output Angle ±43°
Oil Inlet Hole M16×1.5
Oil Outlet Hole M17×1.5
Input Shaft Spline Φ17.5×36
Output Shaft Spline Φ30.3×48
| information | |
|---|---|
| CNA NO. | CNA-F127Z-1-3411010 RH |
| OEM REF. | SG-10040RH |
| Applicable Front A×le Load | 2500kg |
| Power Cylinder Diameter | 80mm |
| Rated Work Pressure | 10MPa |
| Recommend Pump Flow Rate | 10L/min |
| Circles | 4.5r |
| Output Angle | ±43° |
| Oil Inlet Hole | M16×1.5 |
| Oil Outlet Hole | M17×1.5 |
| Input Shaft Spline | Φ17.5×36 |
| Output Shaft Spline | Φ30.3×48 |
| Suitable for | TOYOTA |
