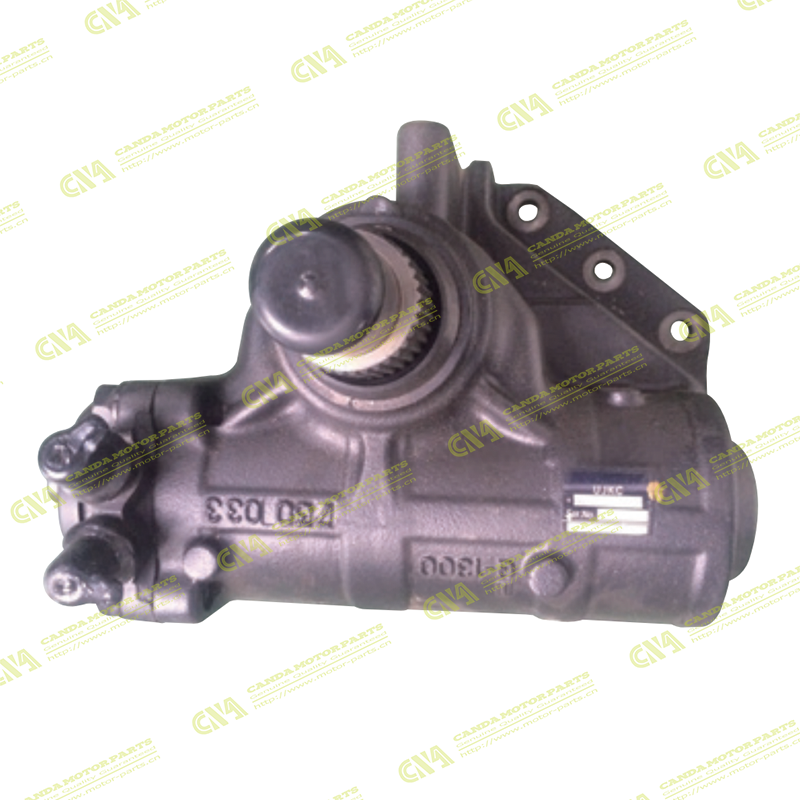

Steering Gear Box ISUZU 446-01911
ISUZU 446-01911
- OEM REF.：
- 446-01911
- CNA NO.：
- CNA-C122-3411010 RH
请选择规格
- Quantity：
Stock：0 pcs Sold：0 pcs
-
Steering Gear Box ISUZU 446-019110 US$
Total：0 US$
Applicable Front A×le Load 6500kg
Power Cylinder Diameter 100mm
Rated Work Pressure 13.7MPa
Recommend Pump Flow Rate 18L/min
Circles 6.33r
Output Angle ±48°
Oil Inlet Hole M18×1.5
Oil Outlet Hole M18×1.5
Input Shaft Spline Φ21.775X36
Output Shaft Spline Φ55.5X36
| information | |
|---|---|
| CNA NO. | CNA-C122-3411010 RH |
| OEM REF. | 446-01911 |
| Applicable Front A×le Load | 6500kg |
| Power Cylinder Diameter | 100mm |
| Rated Work Pressure | 13.7MPa |
| Recommend Pump Flow Rate | 18L/min |
| Circles | 6.33r |
| Output Angle | ±48° |
| Oil Inlet Hole | M18×1.5 |
| Oil Outlet Hole | M18×1.5 |
| Input Shaft Spline | Φ21.775X36 |
| Output Shaft Spline | Φ55.5X36 |
| Suitable for | ISUZU |
